Light sources

Halogen 9 Volt

Configuration:
Aluminium grip with diameter 1,5 cm, length 13 cm, on/off switch, aperture with max. 30 mm width, min. 1 mm, dimmable with turnable potentiometer, bulbs protected with removable metal cube, 5 m lithesome CPK cable, angle of radiation 90Ā°, transformer adjustable in 1,5 V steps

Features:
all functions operable with one hand only, allows extremely short distance to the object with still sharp shadow edges, details can be projected sharp and big, also usable for reflexions and refractions in the same sharpness, neutral light colour, max. screen size 2,5m x 2,5m

Halogen 12 Volt

Configuration:
wooden grip length 13 cm, pushing dimmer, metal stand for safe stand or mounting on a tripod, cable with approx. 4,5 m, halogen bulb fitted in a 1 litre can, inside sand-treated to avoid reflection, optional with aperture max. width 75 mm

Features:
operable with only one hand, very bright light sources for big screens, the most spread light sources during the last 30 years, used by all the big theatre groups (Teatro Gioco Vita, Amoros et Augustin or Teatro Controluceā€¦)

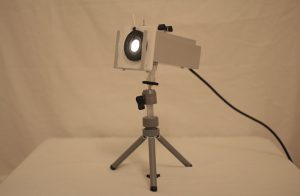

Led 6 V

Configuration:
elegant aluminium case 4×4 cm, length 13 cm, on/off switch, aperture with max. 30 mm width and totally closable, dimmable with pushing dimmer, 5 m flexible cpk cable, frontal radiation, adapter for mounting to a table tripod, aluminium frame to attach diverse extensions

Features:
all functions operable with only one hand, realizes relatively short distances to the object, also usable for reflections and refractions in the same sharpness, warm clolour, max. screen size 4m x 4 m

Led torch big (right)

Configuration:
On/off switch, aperture totally closable, runs with two CR 123A batteries,

Features:
very bright light with rich contrast, good sharpness, aperture totally closable

Led torch small (left)

Configuration:
three modes: bright, less bright, flashing, runs with only one 1,5 V battery

Features:
good sharpness, aperture totally closable

Battery rod light

Configuration:
Black plastic battery case, rod of copper, Led chip, 2 micro batteries 1,5 V

Features:
good handling, very good for small screens, can be put into smallest openings ( bottles et cet.)

Summary


ShadowReflectionRefractionPolarisationDimmingApeture
Fittings
Halogen 12 V XXXXXX
Halogen 9 VXXXXXX
Led 6 VXXXXXX
Battery rod lightX
TorchesXXXX
Short distanceBrightnessCompatibilityKind of lightTemp.Colour
Halogen 12 VXXXXbulbhotwarm
Halogen 9 VXXXXbulbwarmneutral
Led 6 VXXXdiodewarmwarm
Battery rod lightXdiodecoldcool
Torch
XXdiodecoldcool
